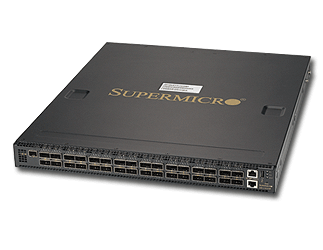

Supermicro SSE-C3632S - 40/100GbE Bare Metal Switch (SDN Cumulus ready) - 32×40/10GbE (QSFP28), rPS, F2B

1U ToR 40Gbps/100Gbps Ethernet Switch
Bare metal – ONIE installed
Cumulus Linux Ready
Data Center Friendly
   - Dual Redundant Hot-swappable power supplies
   - Regular and Reverse Air-Flow Models
Powerful Broadcom Tomahawk Switch Chip
   - 3.2Tbps Switching Capacity
   - Non-blocking
Versatile Intel Rangeley Processor
   - 4Gbyte DRAM
   - 8Gbyte SSD

Physical Ports:
- 32 x 40Gbps Ethernet QSFP28 ports
- 32 x 100Gbps Ethernet QSFP28 ports
- 1 x 10Gbps Ethernet SFP+ ports
- RJ-45 Gigabit Ethernet management port
- RJ-45 serial console
- Type A USB 2.0 port

Data Forwarding:
- Full Duplex 3.2Tbps Switching Capacity
- Broadcom Tomahawk Switch Chip
- Non-blocking, wire-speed Layer 3 Routing
- NVGRE/VXLAN overlay support

Control Plane:
- Intel Rangeley CPU
- 4Gbyte DRAM
- 8Gbyte SSD
- Cumulus Linux Ready

Power:
- Redundant hot-pluggable power supplies
- AC Input: 100-127/200-240 V, 50/60 Hz
- 800W@ 12V/65 A
- Power Consumption: < 650 Watts

Physical/Environmental:
- Weight: Net weight: 10.18kg (with 2 PSUs)
- Regular and Reverse Airflow Models
- Size (W x D x H): 433.8 x 520 x 44 mm (17.07 x 20.47 x 1.73 inches)
- Temperature: Operating 0°C to 40°C (32°F to 104°F)
- Humidity: Operating: 5% to 95% (non-condensing)

General:
- Bare metal
- 1U form factor for flexible installation
- Mounting Rails (included)
