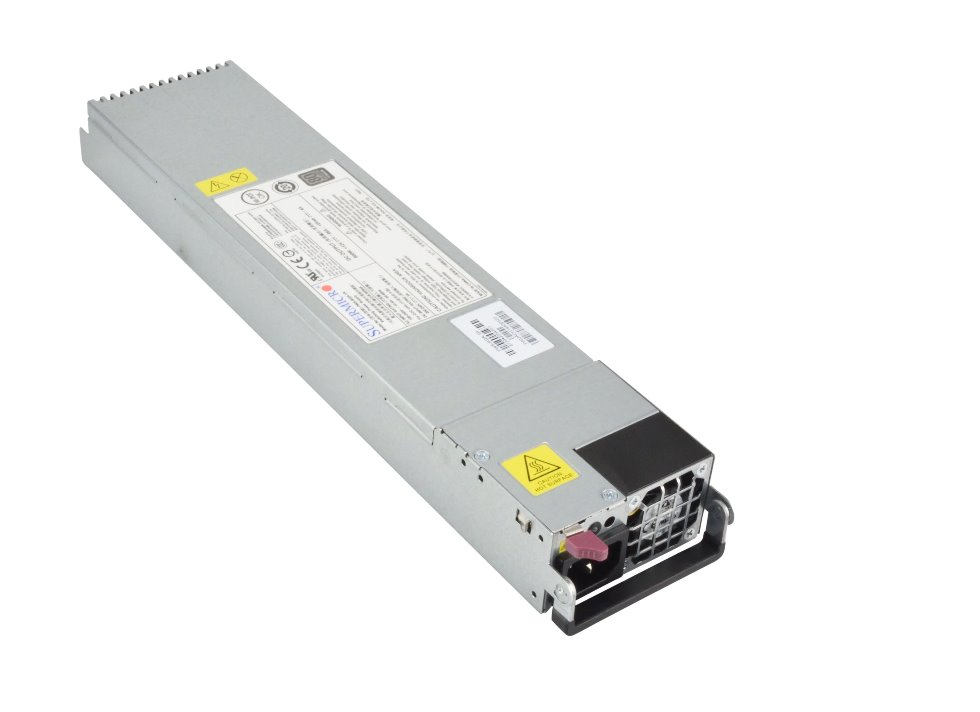

PWS-802A-1R modul zdroje pro SC823MTQC/SC825MBTQC/SC825TQC

The Supermicro PWS-802A-1R is an 80 Plus Titanium power supply capable of supplying 800W output power at 96% efficiency. Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages. Features a card edge connector for connection with the backplane of compatible Supermicro 1U systems. This power supply is designed to not only provide you reliable power to your Supermicro server but also protects it from over voltage, over current and short circuiting via protective circuitry embedded into the unit. Rest easy knowing your hardware will be up and running with a mean-time between failure (MTBF) of greater than 200,000 hours (at 25 C) and an LED indicator to keep you informed on normal/abnormal conditions for your PSU. This power supply is redundant to safe-guard your system from power failure and allows for hot-swap replacement to eliminate system downtime. All materials contained comply with RoHS requirements and is certified by Supermicro.

Total Power Output 800W
Type Redundant
Type of Power Supply Power Supply
Form Factor 1U
Dimension (W x H x L) 76 x 336 x 40mm
+5V N/A
+12V 66A
+3.3V N/A
5V Standby 4A
Input Voltage Range 100-240Vac: 800W
Input Frequency Range 50-60Hz
PMBus 100-240Vac: 10 - 5A // 200-240Vdc: 5A
Output Type Gold Finger
8Pin / 4Pin (12V) Connector N/A
PFC N/A
PMBus Yes
Energy Efficiency 96%+ Efficiency
80 Plus Certification 80 Plus Titanium
Validated Chassis CSE-823MTQC-R802LPB, CSE-823MTQC-R802WB, CSE-825MBTQC-R802LPB, CSE-825MBTQC-R802WB, CSE-825TQC-R802LPB, CSE-825TQC-R802WB, CSE-835TQC-R802B
Warranty 1 year warranty
Product Environmental Compliance RoHS and REACH compliant, details available upon request
