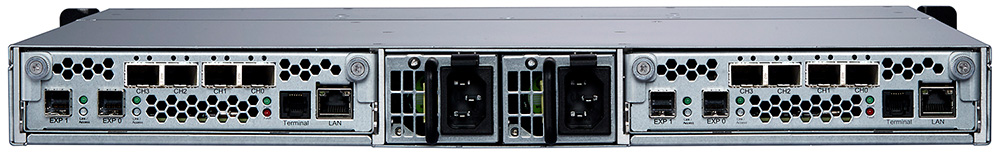

Areca 9200FS-QR1 1U head 16Gb FC SCSI(4×)/SAS3(2×8644) ,2GB, SinglCntrl R0/1/5/6/10/50,60,rPS

Host Interface - Four FC 16Gbs per controller

Drive Interface:
- Up to 512 12Gb/s SAS or 6Gb/s and 3Gb/s SAS/SATA
- HDDs/ SSD, using 12Gb/s SAS JBOD
- Dual downstream SFF-8644 (4 x 12Gb/s) expansion ports per controller

System Architecture:
- Dual core RAID-on-Chip (ROC) 1.2GHz processor
- One 204-pin DIMM socket for 2GB (default) DDR3-1600, 1RX8/2RX8, ECC module up to 4GB or 8GB DDR3-1600, 1RX8/2RX8,  Unbuffered/Registered ECC module
- Dual downstream SFF-8644 (4 x 12Gb/s) expansion ports per controller
- Supports up to 512 12Gb/s SAS or 6Gb/s and 3Gb/s SAS/SATA HDDs/SSD, using 12Gb/s SAS JBOD
- Redundant controller operation with active/active and fail-over/ fail-back function
- Dual-active RAID controller with cache mirroring through dedicated high speed bus
- Advanced configuration for video optimized performance settings
- Support flash-based or battery backup module (FBM/BBM) ready (optional: ARC-1883-CAP (For 2GB only) / ARC-1883-BAT / ARC-6120BA-T121-12G

RAID Features
- RAID level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single
- Disk or JBOD
- Multiple RAID 0 and RAID 10(1E) support (RAID 00 and RAID 100)
- Automatic drive failover and detection and rebuild using multiple Global, Dedicated or Enclosure hot-spare drives
- Multiple pairs SSD/HDD disk clone function
- SSD automatic monitor clone (AMC) support
- SED (Self-encrypting drives) function support
- Support for native 4K and 512 byte sector devices
- Support HDD firmware update
- Hot-swap and redundant components for increasing availability
- Automatic synchronization of firmware version in the dual-active mode
- Multi-path & load-balancing support (MPIO)

Monitors/Indicators
- LCD Control Display Panel for setup, alarm mute and configuration
- System Status indication through LCD, LED and alarm buzzer
- SMTP support for email notification
- SNMP support for remote manager
- Enclosure management ready

RAID Management
- Field-upgradeable firmware in flash ROM
- Firmware-embedded manager via RS-232 port
- Embedded browser-based RAID manager via built-in 10/100 Lan port
- Access terminal menu by telnet via a LAN port
- API library for customer to write its own monitor utility
- SAP monitor utility easily manage multiple RAID units in the network

Power Supply/In/out:
- Dual 200W hot swap and redundant with PFC, N+1 design
- AC voltage: 110V@40A, 230V@80A for input inrush current with PFC (auto-switching)
- Supports 90-264 VAC input at 47-63 Hz frequency

Operating System
- OS Independent
